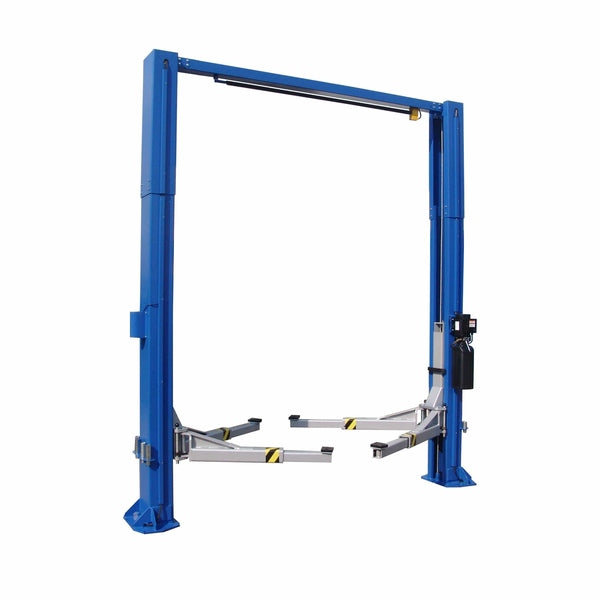

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 2

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 3

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 4

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 5

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 6

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 7

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 8

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 9

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 10

Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive - Image 11

Tuxedo TP12KC-D 12,000 lb Two Post Lift — Direct Drive

$5,349.00

Description
Reviews 0

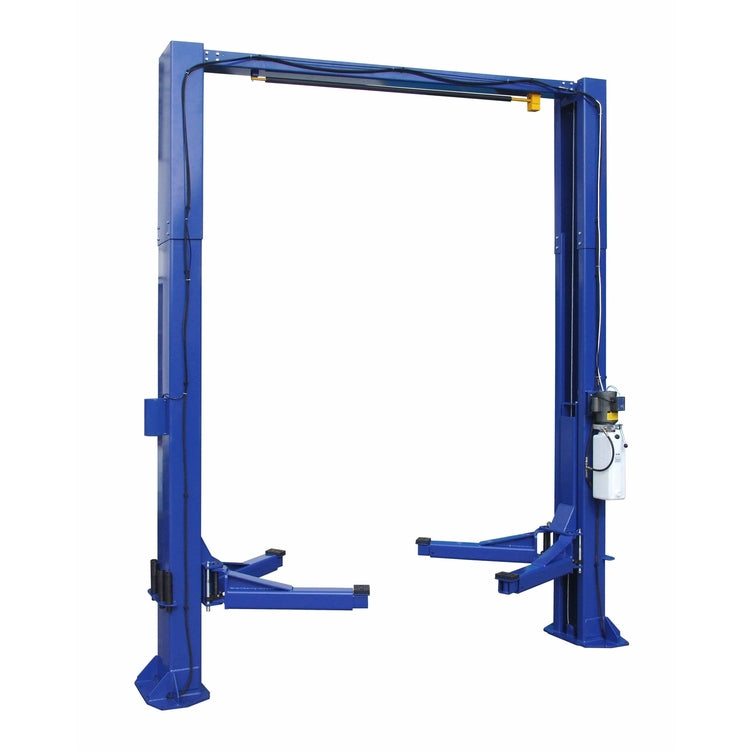

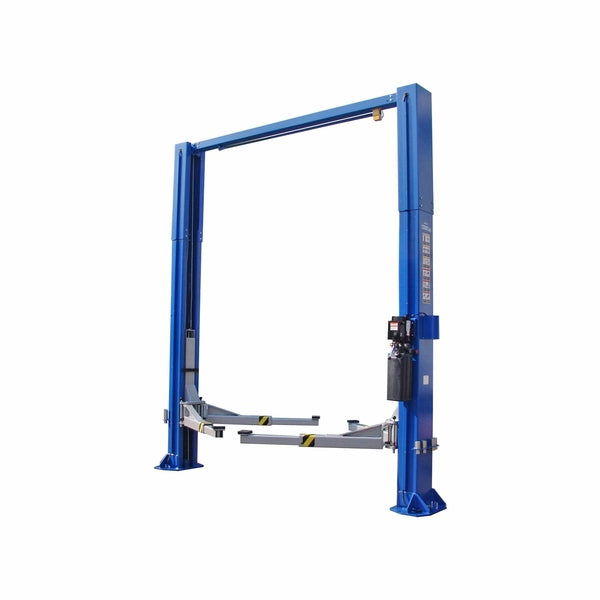

Tuxedo Heavy-Duty 12,000 lb 2 Post Lift

Big. Strong. Dependable. The fully gusseted oversized base plateson the TP12KC-D and the big lifting arms with reinforcedswivel pin holes, promise years of reliable service.

Features

12,000 lbs Capacity
Symmetric Arms
Rubber Door Guards
Direct Drive push Cylinders
Single Point pneumatic Lock Release

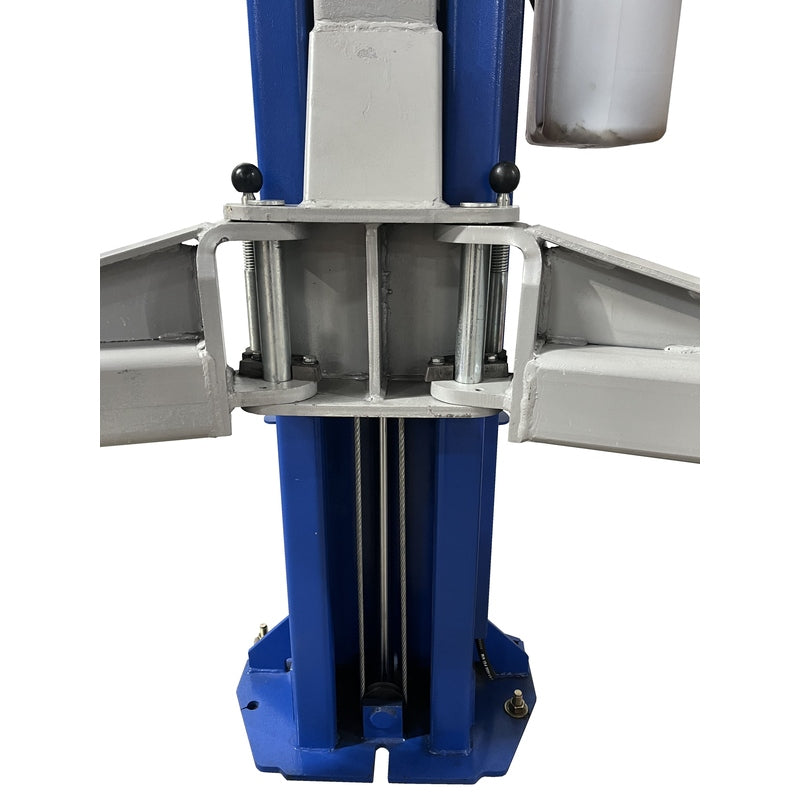

Heavy Duty Arm Restraint System

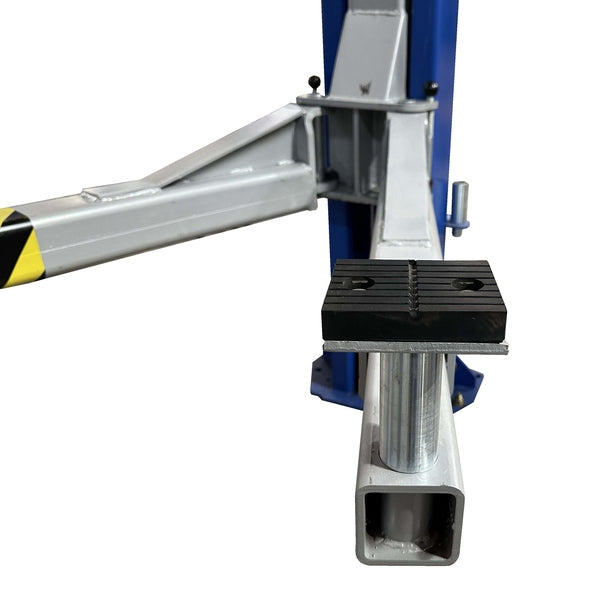

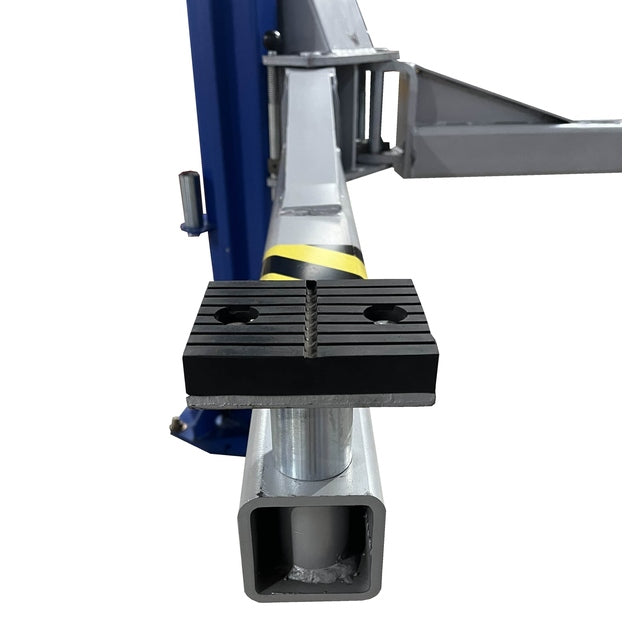

Drop-in Lift Pads

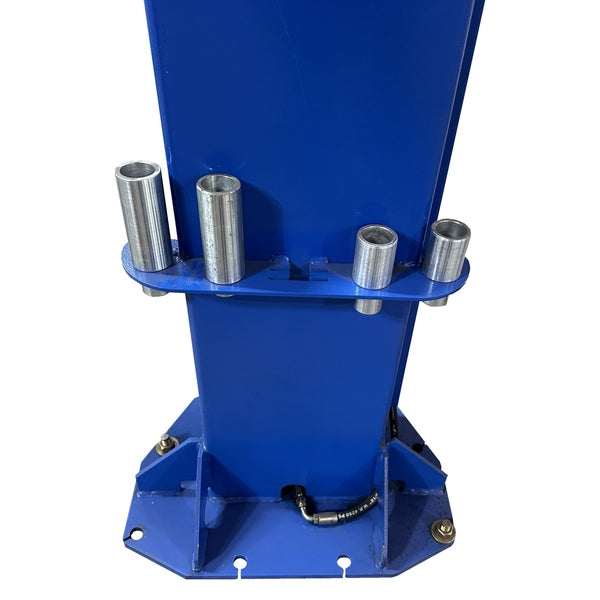

Stackable Adapters Included
External hose guards

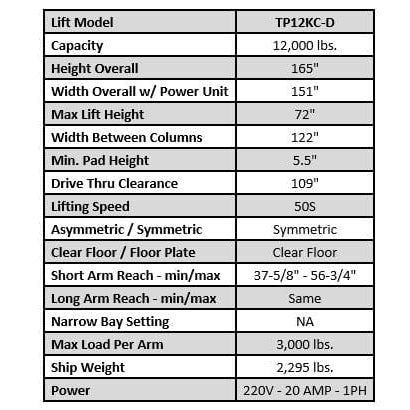

Specifications

Lift Model	TP12KC-D
Capacity	12,000 lbs.
Height Overall	165″
Width Overall w/ Power Unit	151″
Max Lift Height	72″
Width Between Columns	122″
Min. Pad Height	5.5″
Drive Thru Clearance	109″
Lifting Speed	50S
Asymmetric / Symmetric	Symmetric
Clear Floor / Floor Plate	Clear Floor
Short Arm Reach min/max	37-5/8″ 56-3/4″
Long Arm Reach min/max	Same
Narrow Bay Setting	NA
Max Load Per Arm	3,000 lbs.
Ship Weight	2,295 lbs
Power	220V 20 AMP 1 PH

Manual

Tuxedo TP12KC-D 12,000 lb Two Post Lift Manual
